華強芯城引進JST連接器
2018-08-21

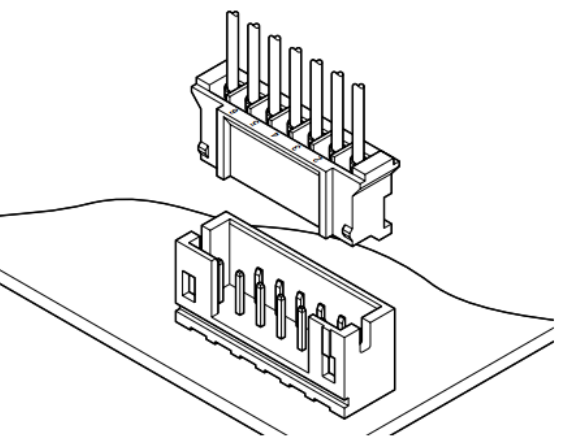

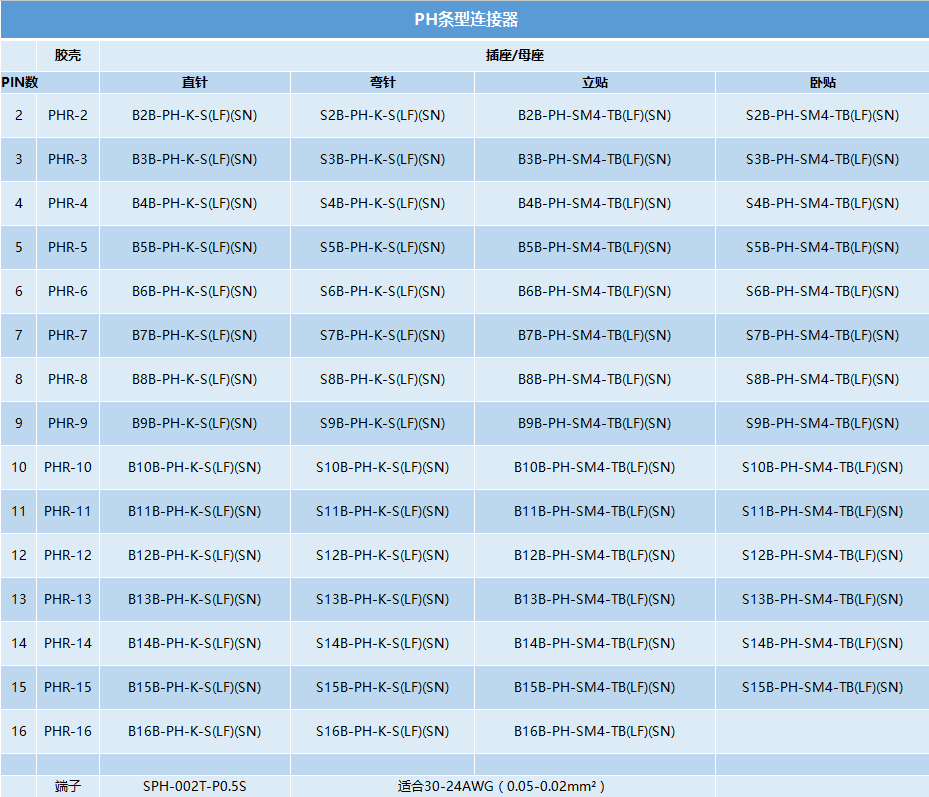

1、PH系列條型連接器（通稱PH2.0）
JST的經典系列，被市場所廣泛認可。提供直針 彎針 立貼 臥貼四種款型供客戶選擇。
適用:電流2A電壓100V以內。
選型建議:6PIN及以下為通用PIN數，7-10PIN次之，10PIN以上不太建議選用。

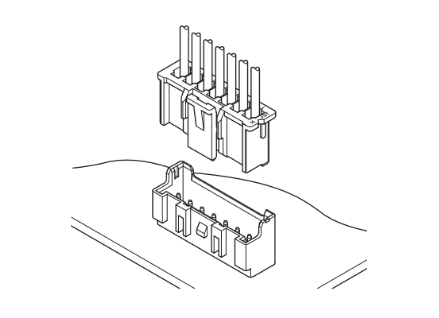

2、PA系列條型連接器
PA系列是JST開發的用于替換PH系列的新產品，增加了鎖扣還有導向槽等設計，從各方面來講都是優于PH系列的一款產品。
適用:電流3A電壓250V以內。
選型建議:1、 6PIN及以下為通用PIN數，7-10PIN次之，10PIN以上不太建議選用。
2、盡量選擇不帶定位的。
| PA條型連接器 | ||||||||
| 膠殼 | 插座/母座 | |||||||
| PIN數 | 直針 | 彎針 | 立貼 | 臥貼 | ||||
| 不帶定位 | 帶定位 | 帶定位 | 不帶定位 | 帶定位 | 不帶定位 | 帶定位 | ||
| 2 | PAP-02V-S | B02B-PASK(LF)(SN) | B02B-PASK-1(LF)(SN) | S02B-PASK-2(LF)(SN) | BM02B-PASS-TFT(LF)(SN) | BM02B-PASS-1-TFT(LF)(SN) | SM02B-PASS-TBT(LF)(SN) | SM02B-PASS-1-TBT(LF)(SN) |
| 3 | PAP-03V-S | B03B-PASK(LF)(SN) | B03B-PASK-1(LF)(SN) | S03B-PASK-2(LF)(SN) | BM03B-PASS-TFT(LF)(SN) | BM03B-PASS-1-TFT(LF)(SN) | SM03B-PASS-TBT(LF)(SN) | SM03B-PASS-1-TBT(LF)(SN) |
| 4 | PAP-04V-S | B04B-PASK(LF)(SN) | B04B-PASK-1(LF)(SN) | S04B-PASK-2(LF)(SN) | BM04B-PASS-TFT(LF)(SN) | BM04B-PASS-1-TFT(LF)(SN) | SM04B-PASS-TBT(LF)(SN) | SM04B-PASS-1-TBT(LF)(SN) |
| 5 | PAP-05V-S | B05B-PASK(LF)(SN) | B05B-PASK-1(LF)(SN) | S05B-PASK-2(LF)(SN) | BM05B-PASS-TFT(LF)(SN) | BM05B-PASS-1-TFT(LF)(SN) | SM05B-PASS-TBT(LF)(SN) | SM05B-PASS-1-TBT(LF)(SN) |
| 6 | PAP-06V-S | B06B-PASK(LF)(SN) | B06B-PASK-1(LF)(SN) | S06B-PASK-2(LF)(SN) | BM06B-PASS-TFT(LF)(SN) | BM06B-PASS-1-TFT(LF)(SN) | SM06B-PASS-TBT(LF)(SN) | SM06B-PASS-1-TBT(LF)(SN) |
| 7 | PAP-07V-S | B07B-PASK(LF)(SN) | B07B-PASK-1(LF)(SN) | S07B-PASK-2(LF)(SN) | BM07B-PASS-TFT(LF)(SN) | BM07B-PASS-1-TFT(LF)(SN) | SM07B-PASS-TBT(LF)(SN) | SM07B-PASS-1-TBT(LF)(SN) |
| 8 | PAP-08V-S | B08B-PASK(LF)(SN) | B08B-PASK-1(LF)(SN) | S08B-PASK-2(LF)(SN) | BM08B-PASS-TFT(LF)(SN) | BM08B-PASS-1-TFT(LF)(SN) | SM08B-PASS-TBT(LF)(SN) | SM08B-PASS-1-TBT(LF)(SN) |
| 9 | PAP-09V-S | B09B-PASK(LF)(SN) | B09B-PASK-1(LF)(SN) | S09B-PASK-2(LF)(SN) | BM09B-PASS-TFT(LF)(SN) | BM09B-PASS-1-TFT(LF)(SN) | SM09B-PASS-TBT(LF)(SN) | SM09B-PASS-1-TBT(LF)(SN) |
| 10 | PAP-10V-S | B10B-PASK(LF)(SN) | B10B-PASK-1(LF)(SN) | S10B-PASK-2(LF)(SN) | BM10B-PASS-TFT(LF)(SN) | BM10B-PASS-1-TFT(LF)(SN) | SM10B-PASS-TBT(LF)(SN) | SM10B-PASS-1-TBT(LF)(SN) |
| 11 | PAP-11V-S | B11B-PASK(LF)(SN) | B11B-PASK-1(LF)(SN) | S11B-PASK-2(LF)(SN) | BM11B-PASS-TFT(LF)(SN) | BM11B-PASS-1-TFT(LF)(SN) | SM11B-PASS-TBT(LF)(SN) | SM11B-PASS-1-TBT(LF)(SN) |
| 12 | PAP-12V-S | B12B-PASK(LF)(SN) | B12B-PASK-1(LF)(SN) | S12B-PASK-2(LF)(SN) | BM12B-PASS-TFT(LF)(SN) | BM12B-PASS-1-TFT(LF)(SN) | SM12B-PASS-TBT(LF)(SN) | SM12B-PASS-1-TBT(LF)(SN) |
| 13 | PAP-13V-S | B13B-PASK(LF)(SN) | B13B-PASK-1(LF)(SN) | S13B-PASK-2(LF)(SN) | BM13B-PASS-TFT(LF)(SN) | BM13B-PASS-1-TFT(LF)(SN) | SM13B-PASS-TBT(LF)(SN) | SM13B-PASS-1-TBT(LF)(SN) |
| 14 | PAP-14V-S | B14B-PASK(LF)(SN) | B14B-PASK-1(LF)(SN) | S14B-PASK-2(LF)(SN) | BM15B-PASS-TFT(LF)(SN) | BM15B-PASS-1-TFT(LF)(SN) | SM15B-PASS-TBT(LF)(SN) | SM15B-PASS-1-TBT(LF)(SN) |
| 15 | PAP-15V-S | B15B-PASK(LF)(SN) | B15B-PASK-1(LF)(SN) | S15B-PASK-2(LF)(SN) | ||||
| 16 | PAP-16V-S | B16B-PASK(LF)(SN) | B16B-PASK-1(LF)(SN) | S16B-PASK-2(LF)(SN) | ||||
| 端子 | SPHD-001T-P0.5 | 適合26-22AWG（0.13-0.33mm2） | ||||||
| 端子 | SPHD-002T-P0.5 | 適合28-24AWG（0.08-0.21mm2） | ||||||

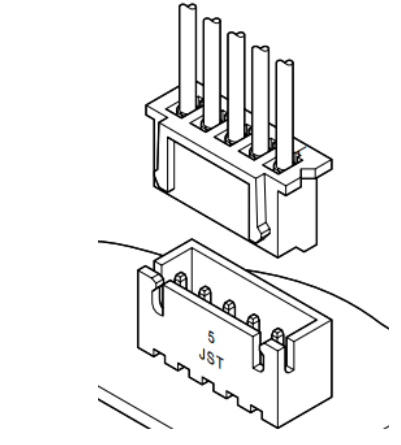

3、XH條型連接器(通稱XH2.5/XH2.54)
JST的經典系列，被市場所廣泛認可。
提供直針 彎針 臥貼四種款型供客戶選擇。
適用:電流3A電壓250V以內。
選型建議:6PIN及以下為通用PIN數，7-10PIN次之，10PIN以上不太建議選用。
| XH條型連接器 | |||||
| 插座/母座 | |||||
| PIN數 | 膠殼 | 直針 | 彎針 | 臥貼 | |
| 不帶定位 | 帶定位 | 不帶定位 | |||
| 2 | XHP-2 | B2B-XH-A(LF)(SN) | B2B-XH-AM(LF)(SN) | S2B-XH-A(LF)(SN) | |
| 3 | XHP-3 | B3B-XH-A(LF)(SN) | B3B-XH-AM(LF)(SN) | S3B-XH-A(LF)(SN) | S3B-XH-SM4-TB(LF)(SN) |
| 4 | XHP-4 | B4B-XH-A(LF)(SN) | B4B-XH-AM(LF)(SN) | S4B-XH-A(LF)(SN) | S4B-XH-SM4-TB(LF)(SN) |
| 5 | XHP-5 | B5B-XH-A(LF)(SN) | B5B-XH-AM(LF)(SN) | S5B-XH-A(LF)(SN) | |
| 6 | XHP-6 | B6B-XH-A(LF)(SN) | B6B-XH-AM(LF)(SN) | S6B-XH-A(LF)(SN) | S6B-XH-SM4-TB(LF)(SN) |
| 7 | XHP-7 | B7B-XH-A(LF)(SN) | B7B-XH-AM(LF)(SN) | S7B-XH-A(LF)(SN) | |
| 8 | XHP-8 | B8B-XH-A(LF)(SN) | B8B-XH-AM(LF)(SN) | S8B-XH-A(LF)(SN) | |
| 9 | XHP-9 | B9B-XH-A(LF)(SN) | B9B-XH-AM(LF)(SN) | S9B-XH-A(LF)(SN) | |
| 10 | XHP-10 | B10B-XH-A(LF)(SN) | B10B-XH-AM(LF)(SN) | S10B-XH-A(LF)(SN) | |
| 11 | XHP-11 | B11B-XH-A(LF)(SN) | S11B-XH-A(LF)(SN) | ||
| 12 | XHP-12 | B12B-XH-A(LF)(SN) | B12B-XH-AM(LF)(SN) | S12B-XH-A(LF)(SN) | |
| 13 | XHP-13 | B13B-XH-A(LF)(SN) | S13B-XH-A(LF)(SN) | ||
| 14 | XHP-14 | B14B-XH-A(LF)(SN) | S14B-XH-A(LF)(SN) | ||
| 15 | XHP-15 | B15B-XH-A(LF)(SN) | S15B-XH-A(LF)(SN) | ||
| 16 | XHP-16 | B16B-XH-A(LF)(SN) | S16B-XH-A(LF)(SN) | ||
| 20 | XHP-20 | B20B-XH-A(LF)(SN) | |||
| 端子 | SXH-001T-P0.6 | 適合28-22AWG（0.08-0.33mm2） | |||

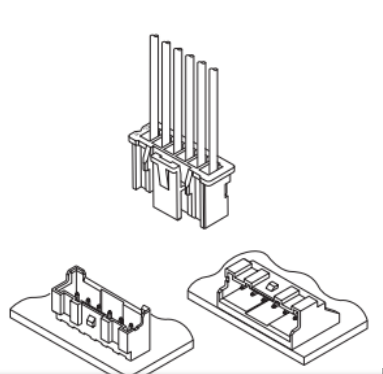

4、XA條型連接器
XA系列是JST開發的用于替換XH系列的新產品，增加了鎖扣還有導向槽等設計，從各方面來講都是優于PH系列的一款產品。
適用:電流3A電壓250V以內。
選型建議:1、6PIN及以下為通用PIN數，7-10PIN次之，10PIN以上不太建議選用。
2、盡量選擇不帶定位的。
| XA條型連接器 | |||||
| 插座/母座 | |||||
| PIN數 | 膠殼 | 直針 | 彎針 | 立貼 | |
| 不帶定位 | 帶定位 | 帶定位 | 不帶定位 | ||
| 2 | XAP-02V-1 | B02B-XASK-1(LF)(SN) | B02B-XASK-1-A(LF)(SN) | S02B-XASS-1(LF)(SN) | BM02B-XASS-TF(LF)(SN) |
| 3 | XAP-03V-1 | B03B-XASK-1(LF)(SN) | B03B-XASK-1-A(LF)(SN) | S03B-XASK-1(LF)(SN) | BM03B-XASS-TF(LF)(SN) |
| 4 | XAP-04V-1 | B04B-XASK-1(LF)(SN) | B04B-XASK-1-A(LF)(SN) | S04B-XASK-1(LF)(SN) | BM04B-XASS-TF(LF)(SN) |
| 5 | XAP-05V-1 | B05B-XASK-1(LF)(SN) | B05B-XASK-1-A(LF)(SN) | S05B-XASK-1(LF)(SN) | BM05B-XASS-TF(LF)(SN) |
| 6 | XAP-06V-1 | B06B-XASK-1(LF)(SN) | B06B-XASK-1-A(LF)(SN) | S06B-XASK-1(LF)(SN) | BM06B-XASS-TF(LF)(SN) |
| 7 | XAP-07V-1 | B07B-XASK-1(LF)(SN) | B07B-XASK-1-A(LF)(SN) | S07B-XASK-1(LF)(SN) | BM07B-XASS-TF(LF)(SN) |
| 8 | XAP-08V-1 | B08B-XASK-1(LF)(SN) | B08B-XASK-1-A(LF)(SN) | S08B-XASK-1(LF)(SN) | BM08B-XASS-TF(LF)(SN) |
| 9 | XAP-09V-1 | B09B-XASK-1(LF)(SN) | B09B-XASK-1-A(LF)(SN) | S09B-XASK-1(LF)(SN) | BM09B-XASS-TF(LF)(SN) |
| 10 | XAP-10V-1 | B10B-XASK-1(LF)(SN) | B10B-XASK-1-A(LF)(SN) | S10B-XASK-1(LF)(SN) | BM10B-XASS-TF(LF)(SN) |
| 11 | XAP-11V-1 | B11B-XASK-1(LF)(SN) | B11B-XASK-1-A(LF)(SN) | S11B-XASK-1(LF)(SN) | BM11B-XASS-TF(LF)(SN) |
| 12 | XAP-12V-1 | B12B-XASK-1(LF)(SN) | B12B-XASK-1-A(LF)(SN) | S12B-XASK-1(LF)(SN) | BM12B-XASS-TF(LF)(SN) |
| 13 | XAP-13V-1 | B13B-XASK-1(LF)(SN) | B13B-XASK-1-A(LF)(SN) | S13B-XASK-1(LF)(SN) | BM13B-XASS-TF(LF)(SN) |
| 14 | XAP-14V-1 | B14B-XASK-1(LF)(SN) | B14B-XASK-1-A(LF)(SN) | S14B-XASK-1(LF)(SN) | |
| 15 | XAP-15V-1 | B15B-XASK-1(LF)(SN) | B15B-XASK-1-A(LF)(SN) | BM15B-XASS-TF(LF)(SN) | |
| 20 | XAP-20V-1 | B20B-XASK-1(LF)(SN) | B20B-XASK-1-A(LF)(SN) | ||
| 端子 | SXA-001T-P0.6 | 適合28-22AWG（0.08-0.33mm2） | |||
| 端子 | SXA-01T-P0.6 | 適合24-20AWG（0.22-0.5mm2） | |||

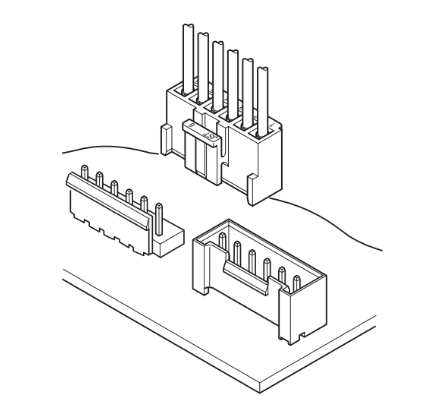

5、VH系列條型連接器（通稱VH3.96）
JST的經典系列，被市場所廣泛認可。提供直針 彎針兩種款型供選擇。
適用:電流10A電壓250V以內。
| VH條型連接器 | ||||
| 插座/母座 | ||||
| PIN數 | 膠殼 | 直針 | 彎針 | 箱型 |
| 2 | VHR-2N | B2P-VH(LF)(SN) | B2PS-VH(LF)(SN) | B2P-VH-FB-B(LF)(SN） |
| 3 | VHR-3N | B3P-VH(LF)(SN) | B3PS-VH(LF)(SN) | B3P-VH-FB-B(LF)(SN） |
| 4 | VHR-4N | B4P-VH(LF)(SN) | B4PS-VH(LF)(SN) | B4P-VH-FB-B(LF)(SN） |
| 5 | VHR-5N | B5P-VH(LF)(SN) | B5PS-VH(LF)(SN) | B5P-VH-FB-B(LF)(SN） |
| 6 | VHR-6N | B6P-VH(LF)(SN) | B6PS-VH(LF)(SN) | B6P-VH-FB-B(LF)(SN） |
| 7 | VHR-7N | B7P-VH(LF)(SN) | B7PS-VH(LF)(SN) | B7P-VH-FB-B(LF)(SN） |
| 8 | VHR-8N | B8P-VH(LF)(SN) | B8PS-VH(LF)(SN) | B8P-VH-FB-B(LF)(SN） |
| 9 | VHR-9N | B9P-VH(LF)(SN) | B9PS-VH(LF)(SN) | B9P-VH-FB-B(LF)(SN） |
| 10 | VHR-10N | B10P-VH(LF)(SN) | B10PS-VH(LF)(SN) | B10P-VH-FB-B(LF)(SN） |
| 端子 | SVH-21T-P1.1 | 適合22-18AWG（0.33-0.83mm2） | ||
| 端子 | SVH-41T-P1.1 | 適合20-16AWG（0.5-1.25mm2） | ||
